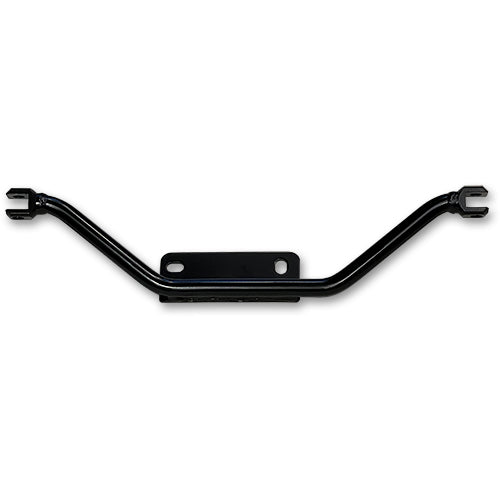

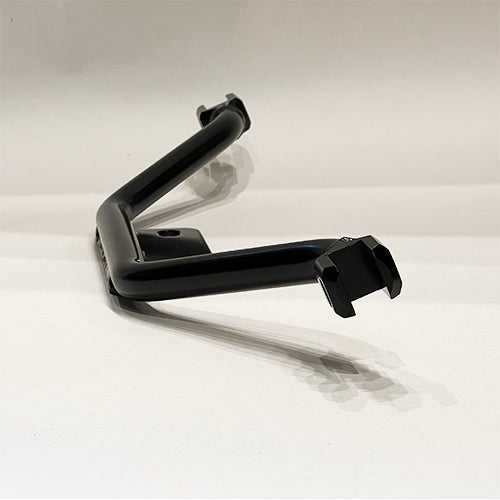

This is a mid-high peg mount that can be installed by tightening it together with the stud bolt of the motor mount.
It is offset forward and upward, achieving a position that feels just right!
If you change it from the normal position, the way you ride will change considerably,
and it will be fun and exciting!
(※Please note that the crankcase may be damaged if you fall over before purchasing.)

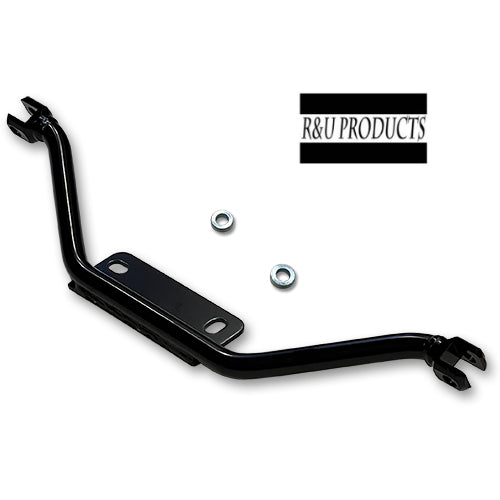

※The included collar is for the engine mounting bolt.
Please use it between the center flat plate and the engine case.
The finish is a black baked paint.
Compatible vehicles
Knuckle/PANHEAD/SHOVEL (rigid/4-speed custom)/EVO Softail, etc.
※EVO Softail/normal primary can be installed.
The difficulty of installation is quite high because the lower nut of the engine motor mount on the primary side cannot be accessed well even with an extension.
It can be assembled without disassembling the primary, but a torque wrench adapter 9/16 is required to tighten the head bolt of the SHOVEL, etc. with a torque wrench.
In that case, use the extension and adapter
from above the vehicle, not from below, to secure the insertion nut and loosen the upper nut.
Or, the special tool, the 16-0518 Primary Engine Mount Lower Wrench, which we have in stock, is very useful.
Basically, the tools required are professional level, so it is difficult to install the EVO by yourself.
Also, you cannot use the standard bolts, so please purchase longer bolts separately.
3/8-24 x 3.75/95mm Motor Mount Bolt / *Set of 2 GRADE8
If the head of the bolt hits the cylinder fin when inserting it after purchasing the above, adjust the length of the bolt with a sander to suit your vehicle and use it.
